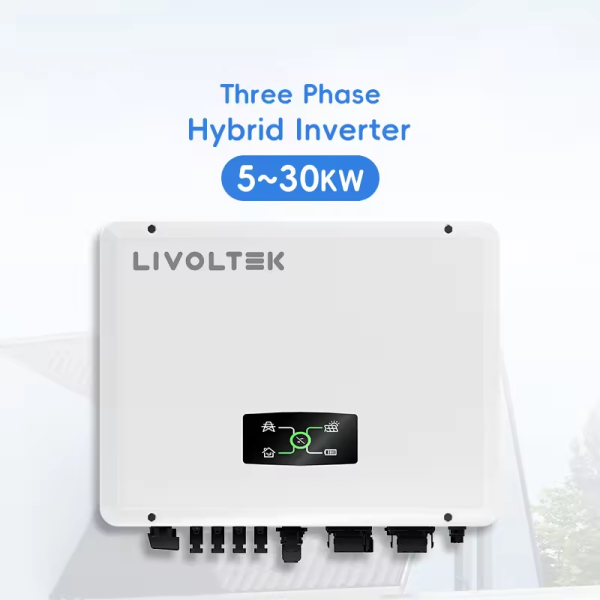

Three Phase Hybrid Inverter 5kW

SKU HP3-5KD1W00101 Categories ,

Price:

2,100.00

17 in stock

As the core of the energy storage solution, LIVOLTEK three phase hybrid inverter offers flexible and scalable solutions for both residential and commercial applications. With the ability of scalable battery storage, the high-voltage inverter facilitate powerful energy backup and also present high self-consumption with

optimised built-in EMS to reduce energy cost.

Features:

High Yield – 150% DC input oversizing and 110% AC output.

Intelligent Management – built-in EMS, integrated online APP and monitoring

Extremely Adaptable – multiple work modes, compatible with grid or generator

System Friendly – Touch-free, One-click communication, easy installation, safe and durable



Power

5KW

Phase

Three Phase

Model

HP3-5KD1

Max. PV Input Power

7500Wp

Max. PV Input Voltage

1000V

Nominal Input Voltage

600V

MPPT Voltage Range

150 V ~ 850 V

No. of MPPTs/Strings per MPPT

2/(1+1)

Max.PV Current

20/20A

Max. Short Circuit Current

30/30A

Nominal AC Output Power

5000W

Max. AC Input Power

7500W

Nominal AC Voltage

3W+N+PE , 230/400V

AC Frequency

50 Hz / 60 Hz

Max. Output Current

8.5A

THDi,Rated Power[%]

< 3%

Power Factor

~1 (Adjustable from 0.8 Leading to 0.8 Lagging)

Nominal EPS Power

5000W

EPS Peak Power

1.1 x Pnom , 60sec

Nominal Output Voltage

3W+N+PE , 230/400V

Nominal Frequency

50 Hz/60 Hz

Nominal Output Current

7.3A

THDv,Rated Power[%]

< 3%

Battery Type

Lithium

Battery Voltage Range

150V ~ 800 V

Max. Charge/Discharge Current

30A/30A

Communication with BMS

CAN

Max. Efficiency

98.1%

Euro Efficiency

97.5%

Dimension (W*H*D)

560*430*250 mm

Weight

20kg

Mounting Method

Wall-mounted

Protection Rating

IP65

Cooling

Intelligent Fan

-25 °C~+60 °C

Operating Temperature Range

Display

LED & APP

Communication

Wi-Fi/DRM/CAN/RS485

Standard Warranty

5 Years

Remarks: The range of output Voltage and frequency may vary depending upon different grid codes.

.
