€6,171.00
84 in stock

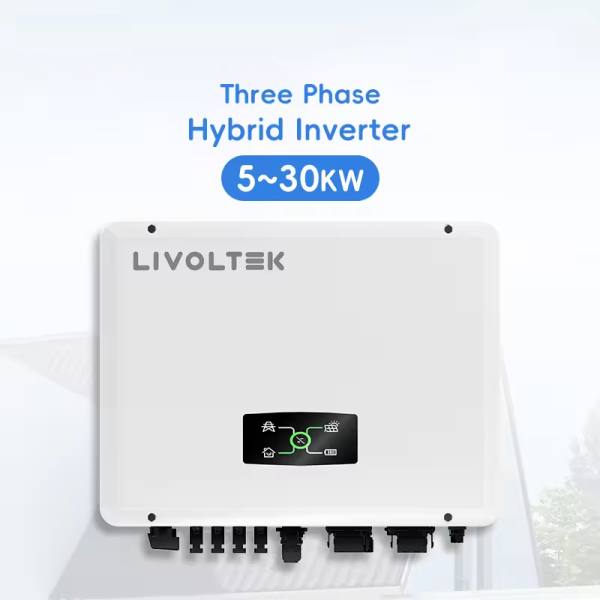

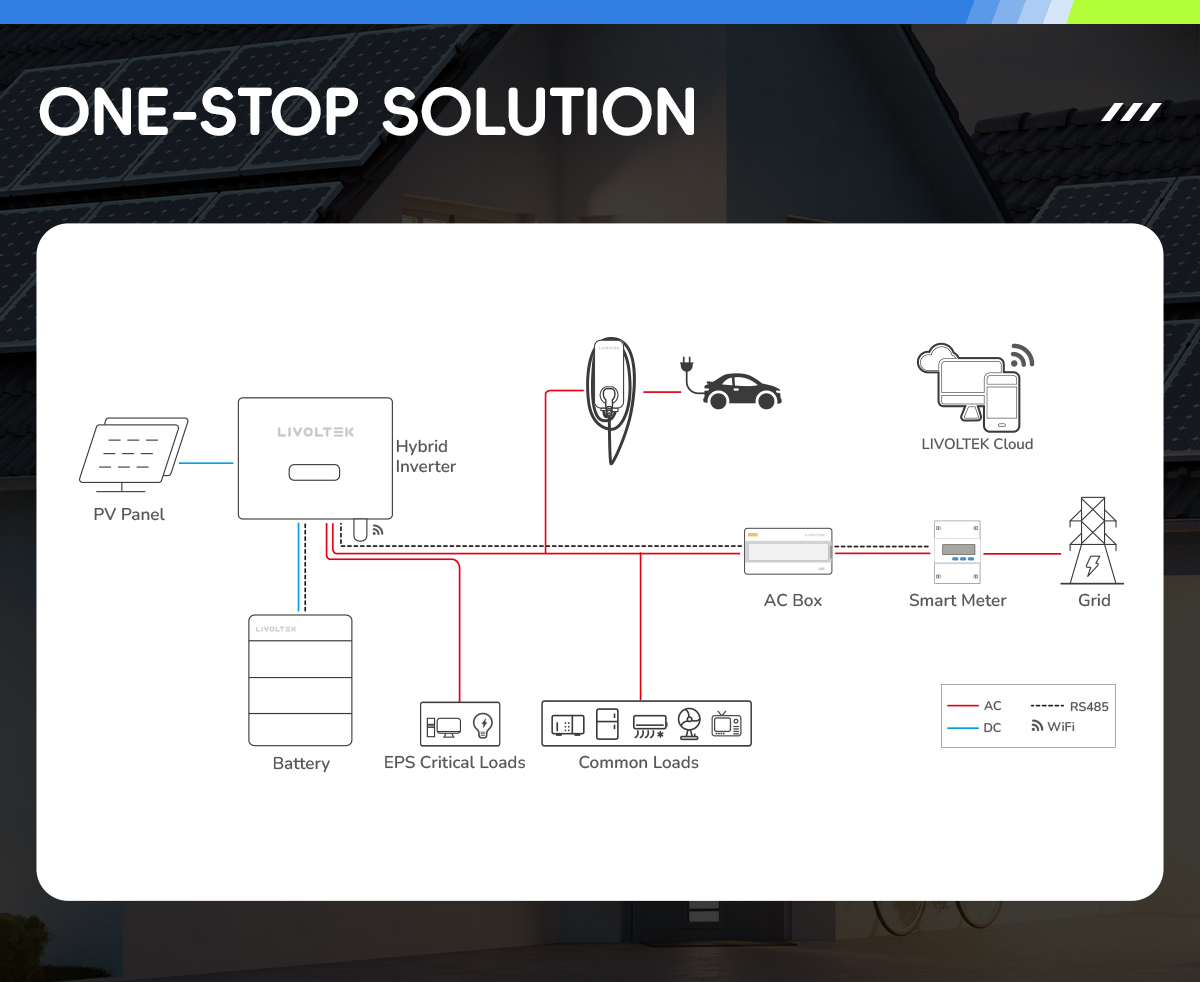

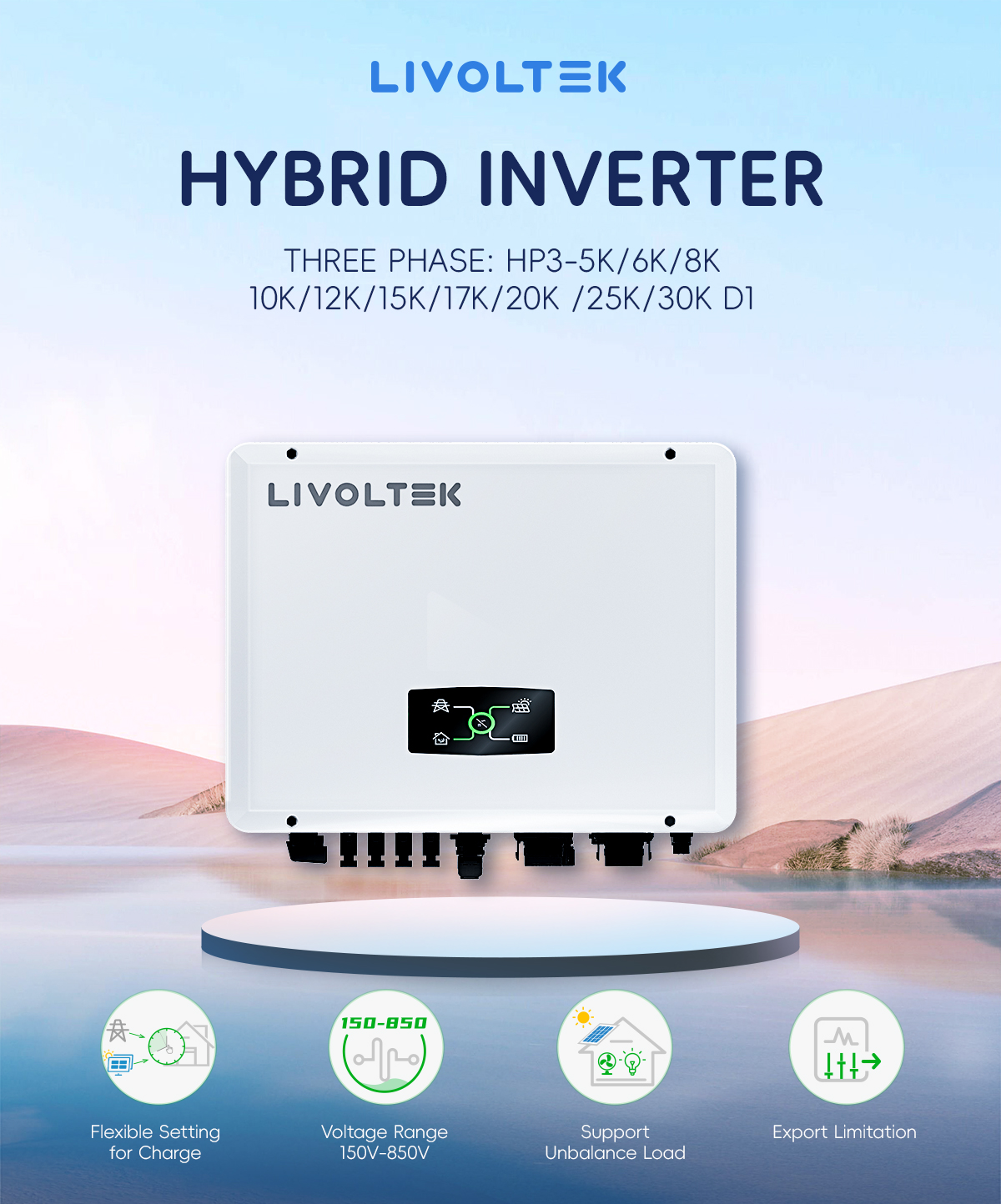

As the core of the energy storage solution, LIVOLTEK 30kW three phase hybrid inverter offers flexible and scalable solutions for both residential and commercial applications.

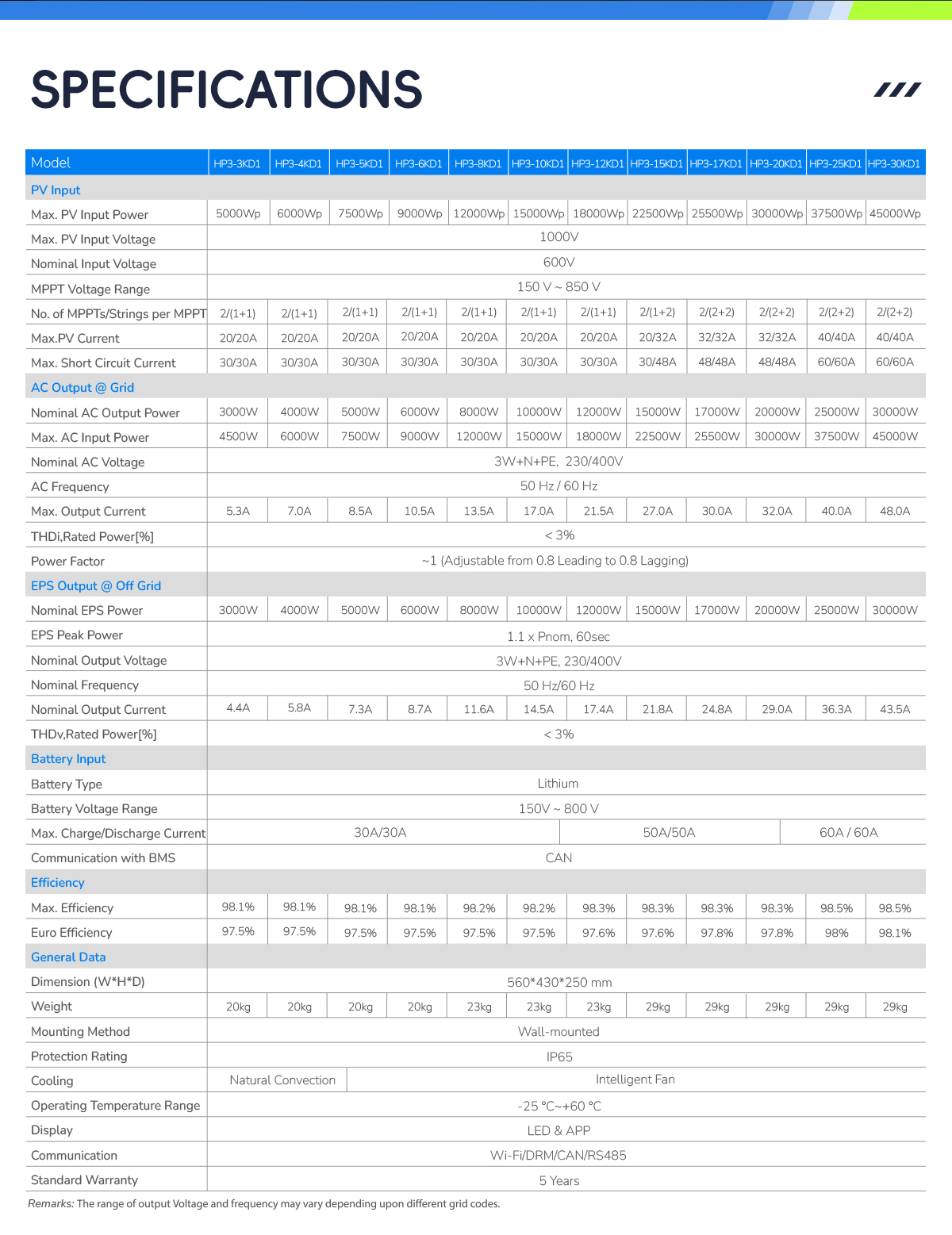

Features
| Power |
30KW |
|---|---|
| Phase |
Three Phase |
| Model |
HP3-30KD1 |
| Max. PV Input Power |
45000Wp |
| Max. PV Input Voltage |
1000V |
| Nominal Input Voltage |
600V |
| MPPT Voltage Range |
150 V ~ 850 V |
| No. of MPPTs/Strings per MPPT |
2/(2+2) |
| Max.PV Current |
40/40A |
| Max. Short Circuit Current |
60/60A |
| Nominal AC Output Power |
30000W |
| Max. AC Input Power |
45000W |
| Nominal AC Voltage |
3W+N+PE , 230/400V |
| AC Frequency |
50 Hz / 60 Hz |
| Max. Output Current |
48.0A |
| THDi,Rated Power[%] |
< 3% |
| Power Factor EPS Output @ O |
~1 (Adjustable from 0.8 Leading to 0.8 Lagging) |
| Nominal EPS Power |
30000W |
| EPS Peak Power |
1.1 x Pnom , 60sec |
| Nominal Output Voltage |
3W+N+PE , 230/400V |
| Nominal Frequency |
50 Hz/60 Hz |
| Nominal Output Current |
43.5A |
| THDv,Rated Power[%] |
< 3% |
| Battery Type |
Lithium |
| Battery Voltage Range |
150V ~ 800 V |
| Max. Charge/Discharge Current |
60A / 60A |
| Communication with BMS |
CAN |
| Max. Efficiency |
98.5% |
| Euro Efficiency |
98.1% |

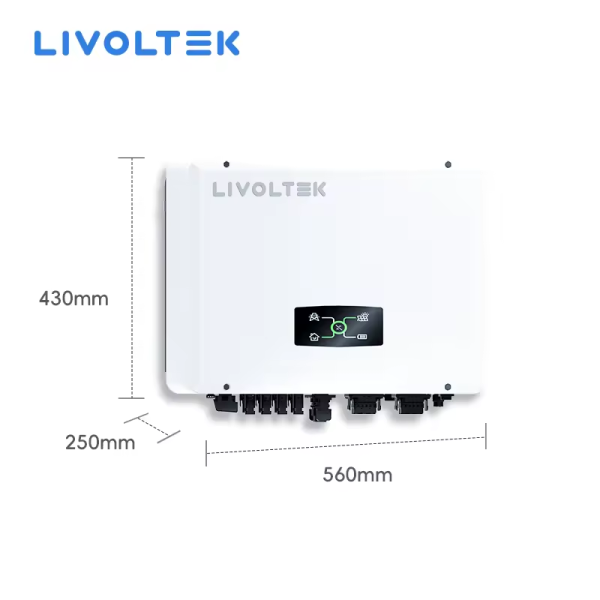

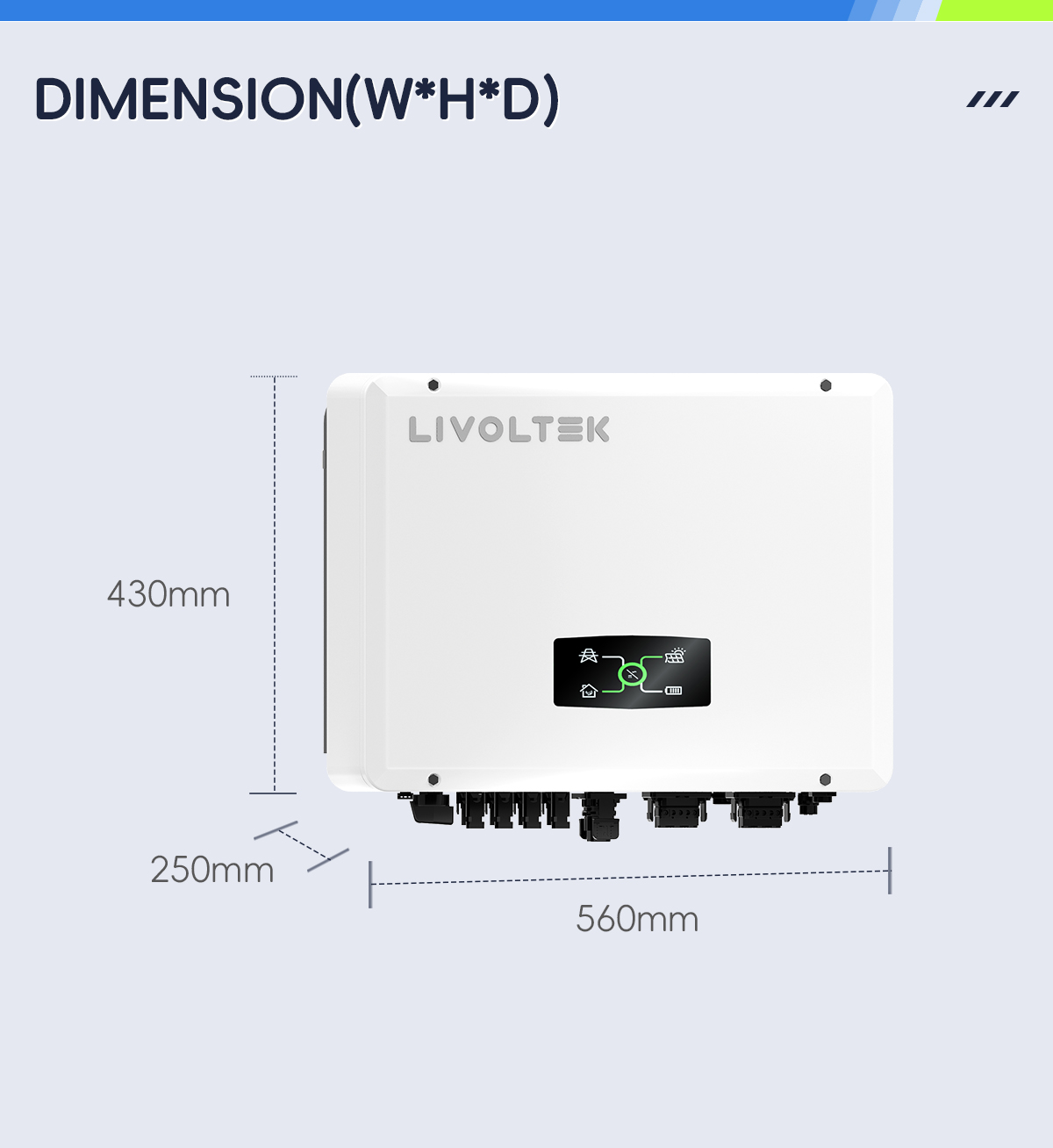

| Dimension (W*H*D) |
560*430*250 mm |
| Weight |
29kg |
| Mounting Method |
Wall-mounted |

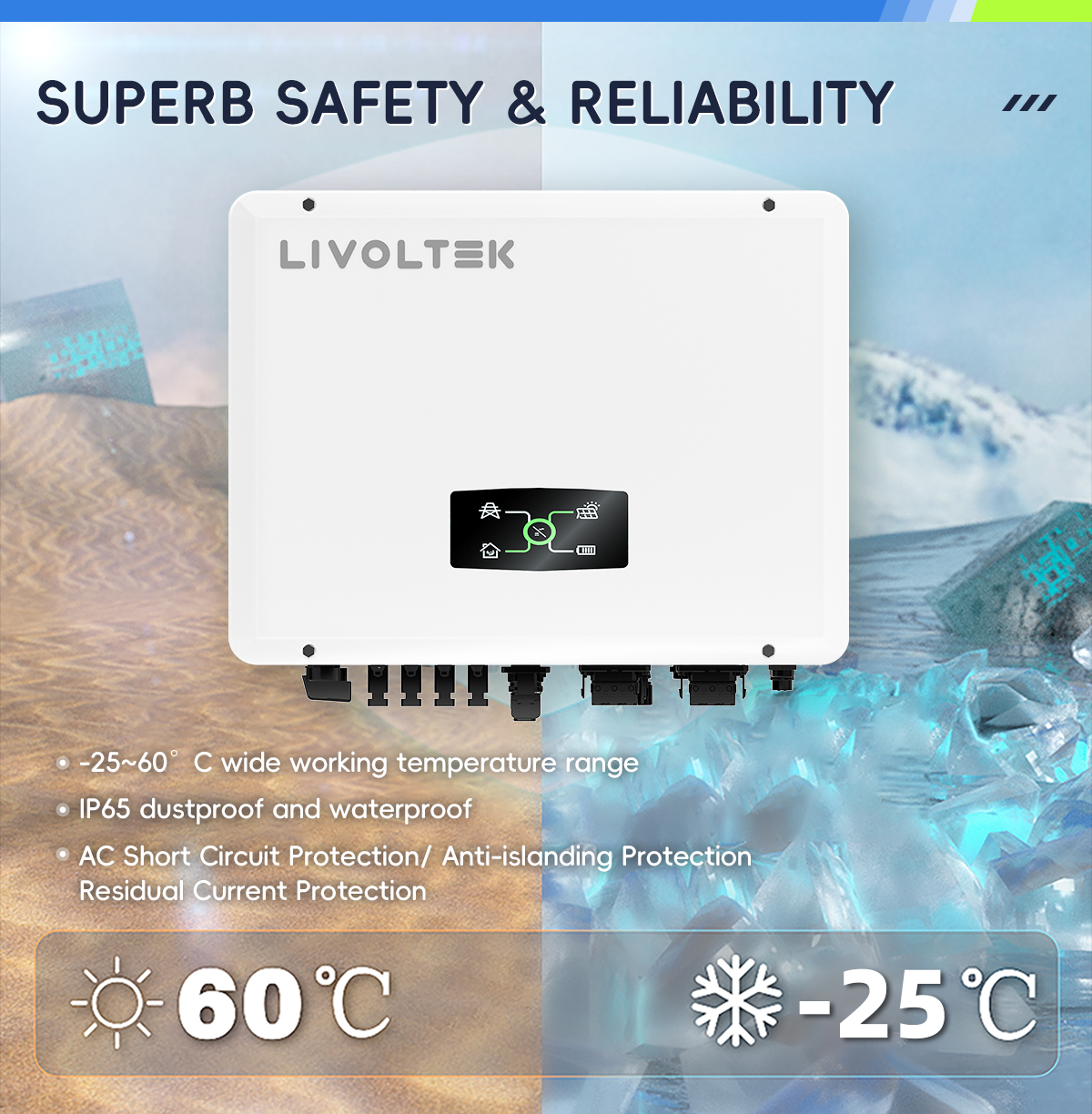

| Protection Rating |
IP65 |
| Cooling |
Intelligent Fan |

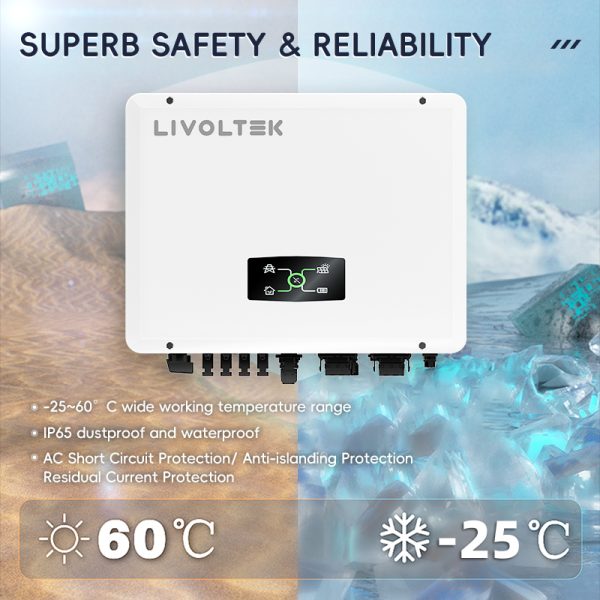

| Operating Temperature Range |
-25 °C~+60 °C |
| Display |
LED & APP |
| Communication |
Wi-Fi/DRM/CAN/RS485 |
| Standard Warranty |
5 Years |
| Remarks: The range of output Voltage and frequency may vary depending upon different grid codes. |
. |
