Solar Kits Single Phase Hybrid 5kW

SKU KIT00032 Categories , ,

Price:

5,936.09

100 in stock

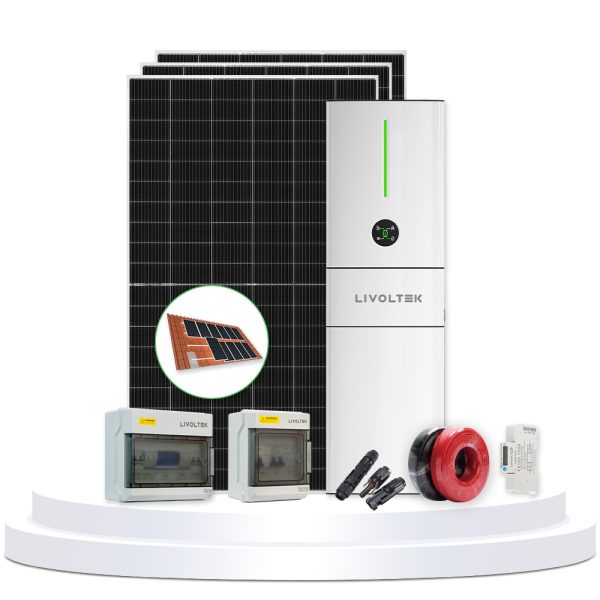

The Livoltek 5000W All In One home solar kits is a solar power generation system designed to be used in homes and provide clean, renewable electrical energy and generate up to 8190kWh/year. The kit includes TW High efficiency solar panels, Livoltek hybrid 5KW Inverter, 5.12KWH LFP Battery, Mounting struture, AC/DC Full protection box, PV cables, MC4 connectors and other components needed for installation.

Easy design for fast installation, with wifi monitoring so that you always know the status of your level of energy production, no matter where you are, via desktop or mobile APP.

The amount of energy generated will depend on factors such as the geographical location, the inclination and orientation of the solar panels, as well as weather conditions.

PV Panel

TW Solar , Monofacial , N-type , TWMND 60HS485W , Power: 485W , 12pcs

Inverter

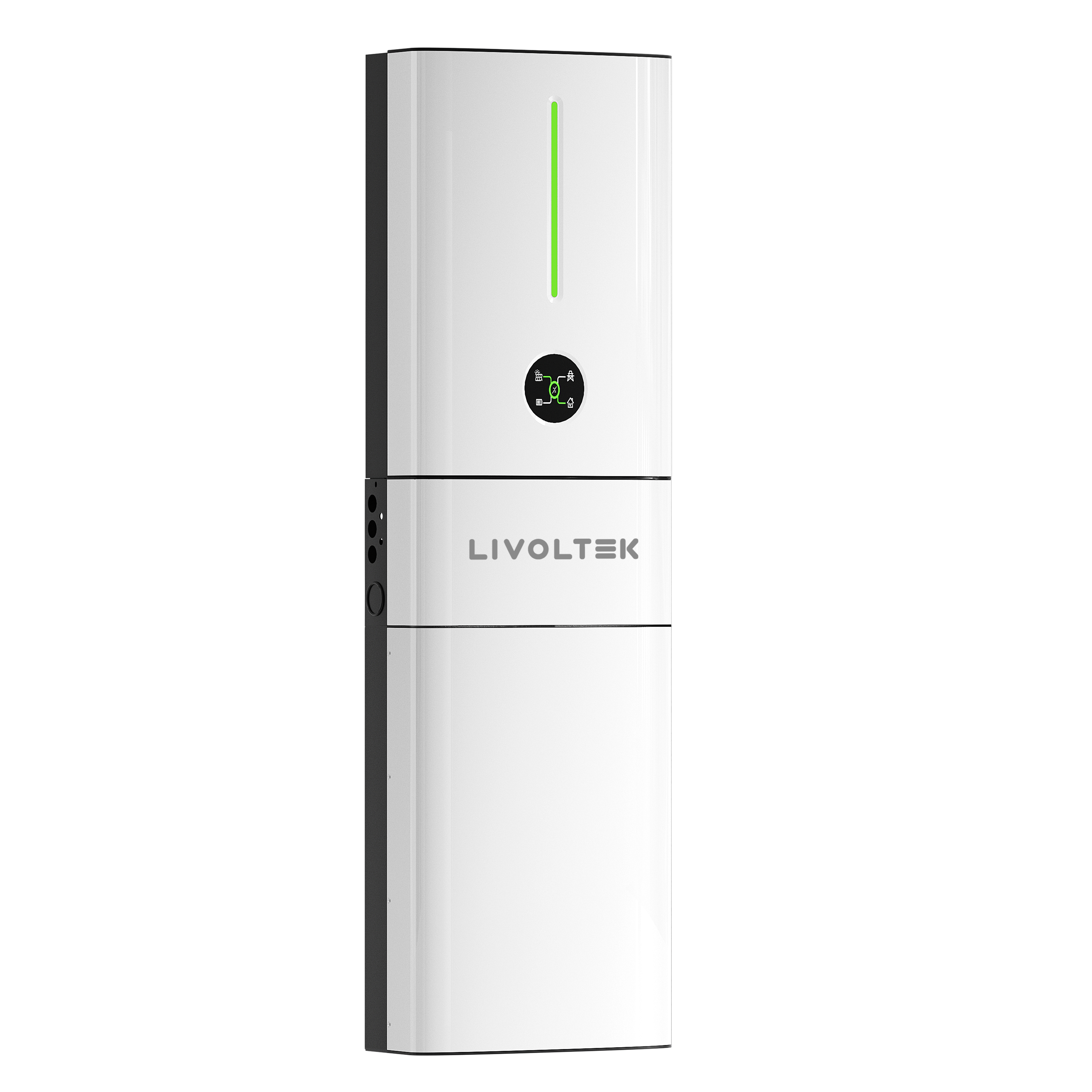

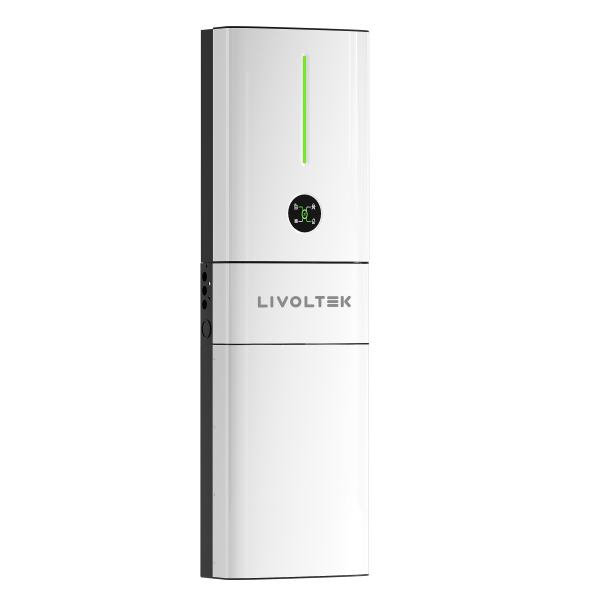

LIVOLTEK , Hybrid Inverter , R310 , 220Vac , 5KW , With WIFI/DRM/CT , 2 MPPTs , 1pcs

Middle Cover

Middle cover for all in one Ess. 1pcs

Battery

LIVOLTEK , LV Li-ion Battery , R320 , 5.12kWh , 51.2V , 100Ah , IP65 , 1pcs

Solar Bracket

Glazed tile roof Aluminum solar bracket , 1kW/SET , 5 Sets

PV Cable

PVC , 1×6 Tinned Multi copper wire , External Φ6.4mm , Weigh 82.9KG/KM , Max Current 70A.Red. 50m/roll. 1 Roll PVC , 1×6 Tinned Multi copper wire , External Φ6.4mm , Weigh 82.9KG/KM , Max Current 70A.Black. 50m/roll. 1 Roll

DC Box

600V 2IN , 2OUT , including FUSE & SPD , 1PCS

AC Box

32A , 3PH , 1IN , 1OUT including RCD & MCB & SPD , 1PCS

Phase

Single Phase

Power

5KW

Solar System

Hybrid Kits
