Single Phase Grid-tied Inverter 4kW

SKU GT1-4KD1R11001 Categories , ,

Price:

830.00

100 in stock

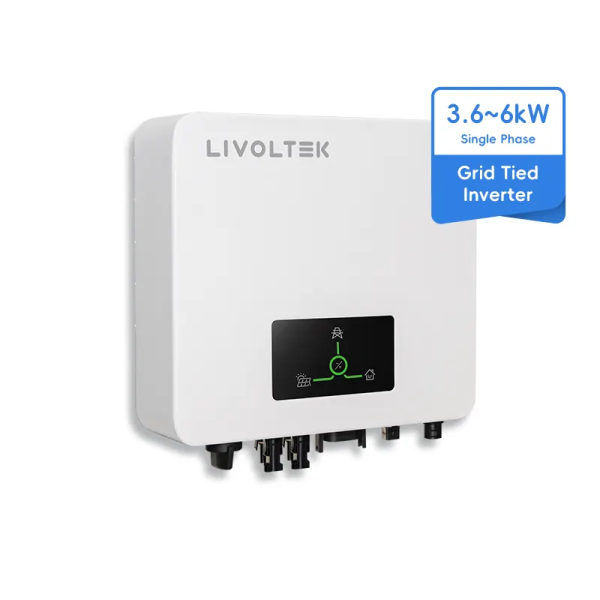

The LIVOLTEK GT1-3.6/4.0/4.6/5.0/6.0K-D1 inverter is specially designed for private residential PV systems and its compact design ensures minimal space requirements. Small in size and light in weight, it can be easily installed by one person. The inverter can optionally integrate the AFCI protection function inside, which can actively reduce the risk of fire as a high safety factor. In addition, it also supports a local bluetooth APP and remote dual monitoring, which is convenient and stable.

Features:

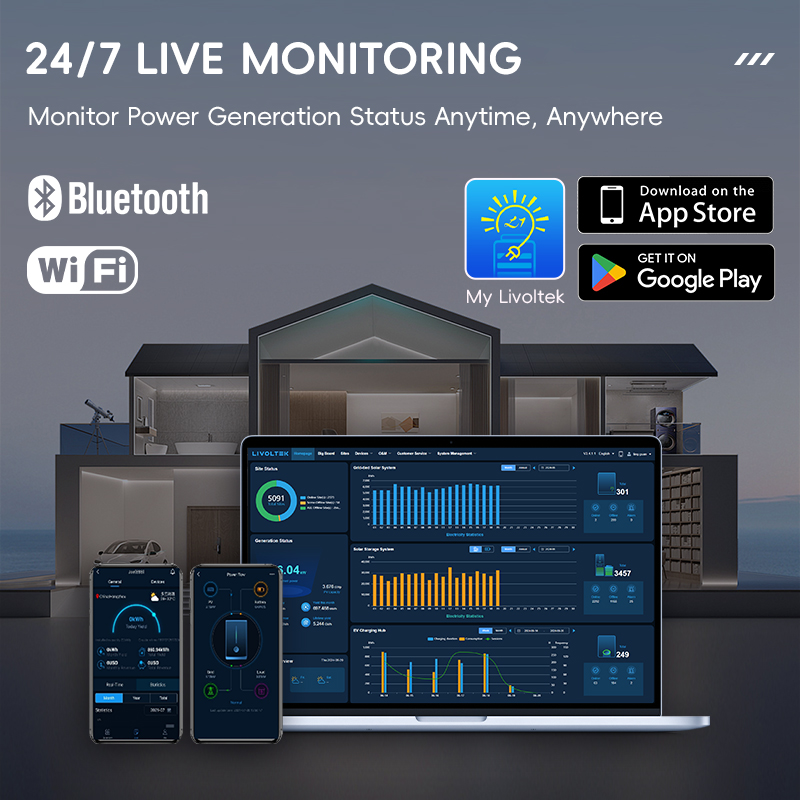

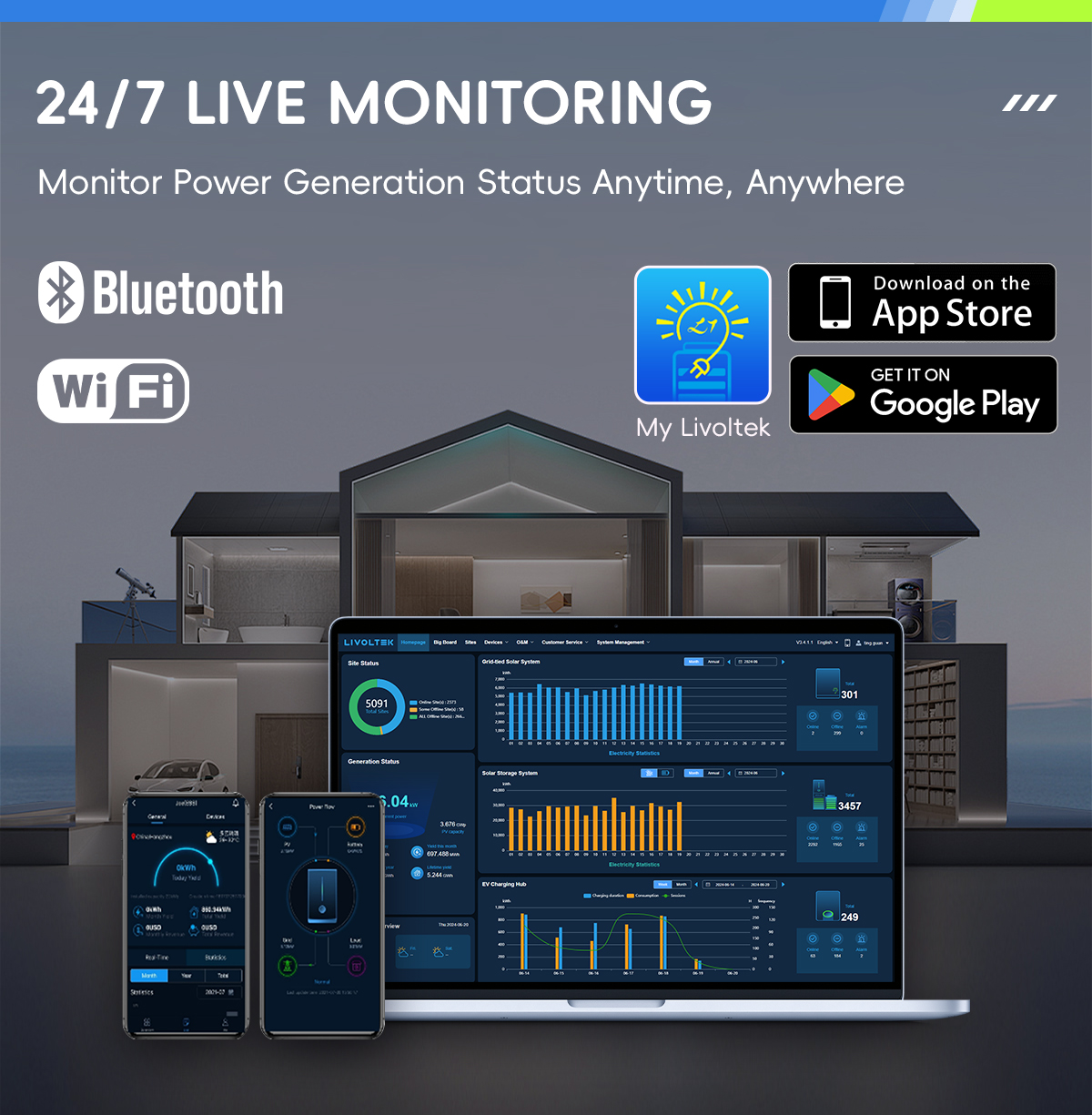

  • 7*24 hours monitoring and maintenance

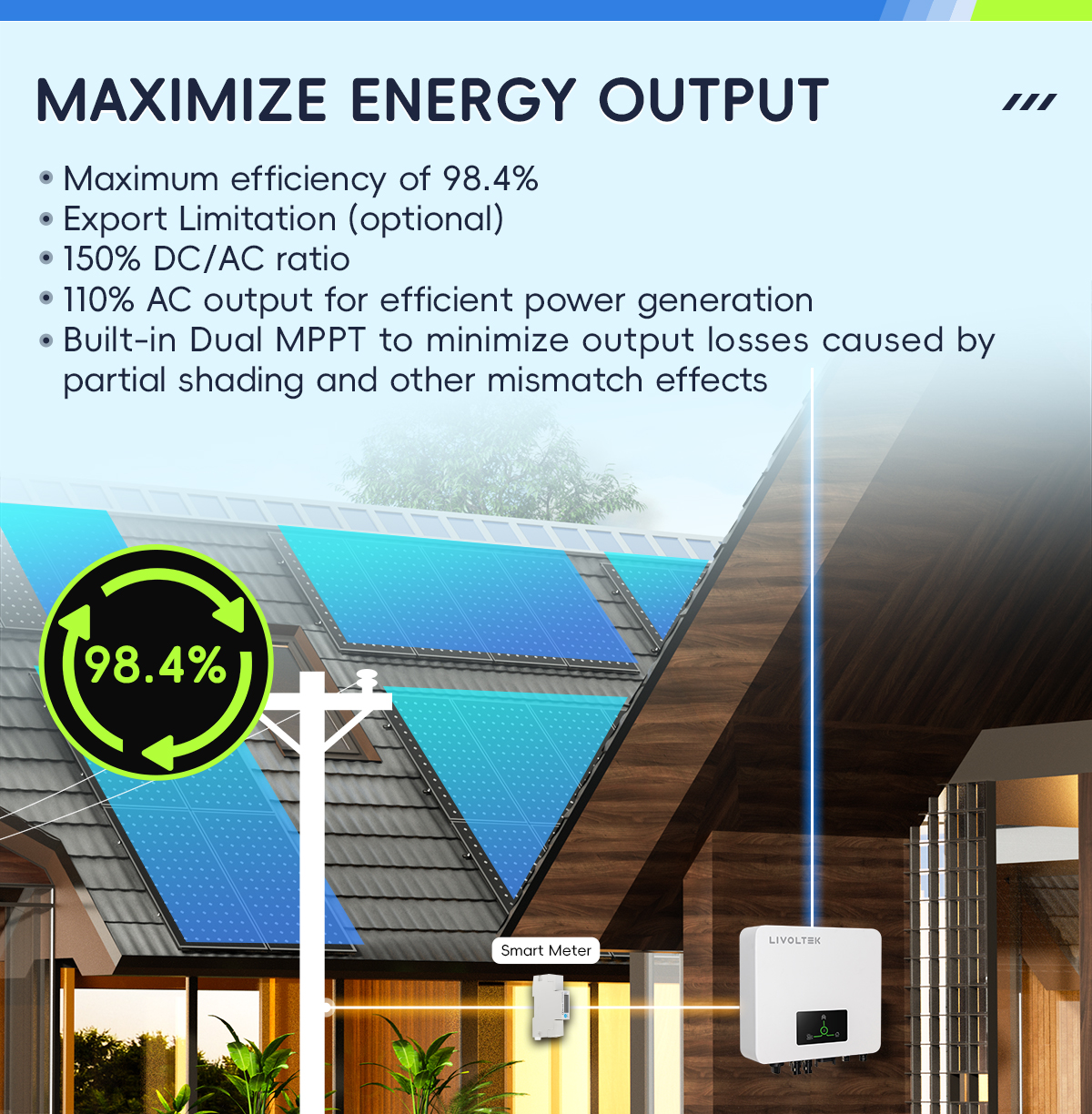

  • Dual MPPT & Maximum efficiency of 97.8%
  • 150% oversizing and 110% overloading

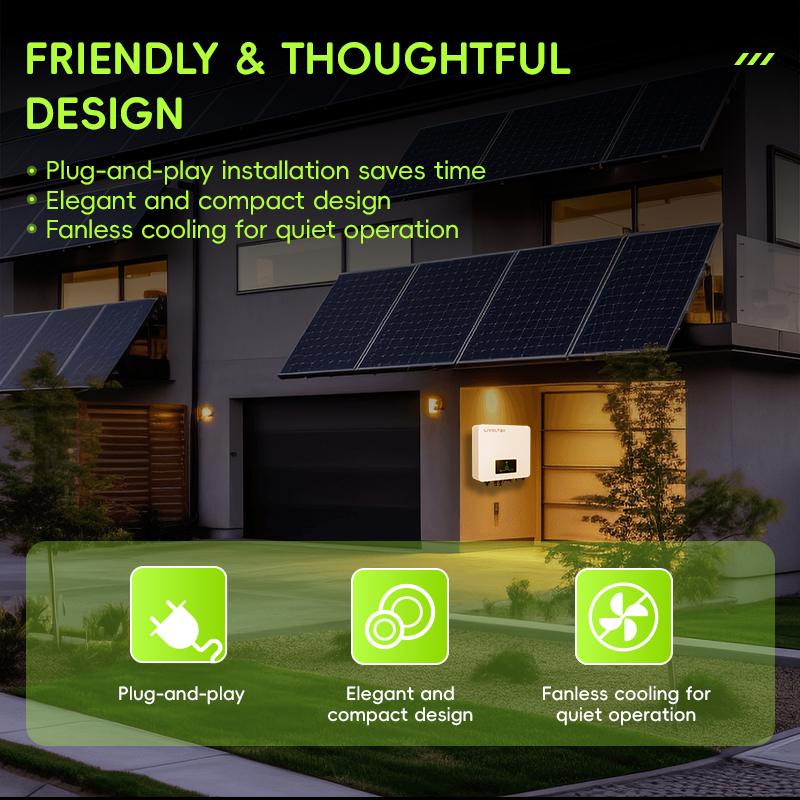

  • Plug-and-play installation saves time

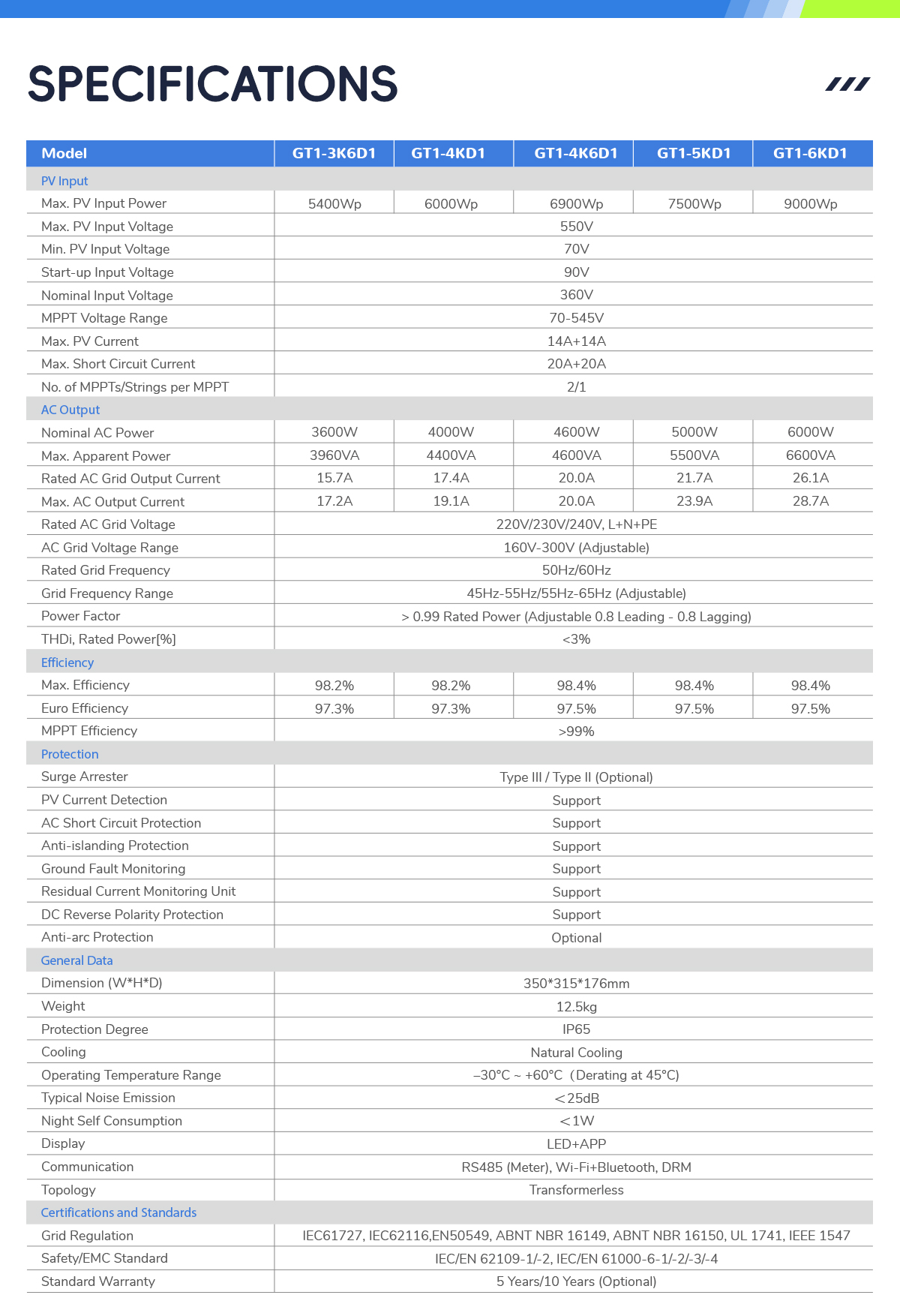

Power

4KW

Phase

Single Phase

Model

GT1-4KD1

Max. PV Input Power

6000Wp

Max. PV Input Voltage

550V

Min. PV Input Voltage

70V

Start-up Input Voltage

90V

Nominal Input Voltage

360V

MPPT Voltage Range

70-545V

Max. PV Current

14A+14A

Max. Short Circuit Current

20A+20A

No. of MPPTs/Strings per MPPT

2/1

Nominal AC Power

4000W

Max. Apparent Power

4400VA

Rated AC Grid Output Current

17.4A

Max. AC Output Current

19.1A

Rated AC Grid Voltage

220V/230V/240V , L+N+PE

AC Grid Voltage Range

160V-300V (Adjustable)

Rated Grid Frequency

50Hz/60Hz

Grid Frequency Range

45Hz-55Hz/55Hz-65Hz (Adjustable)

Power Factor

> 0.99 Rated Power (Adjustable 0.8 Leading – 0.8 Lagging)

THDi, Rated Power[%]

<3%

Max. Efficiency

98.2%

Euro Efficiency

97.3%

MPPT Efficiency

>99%

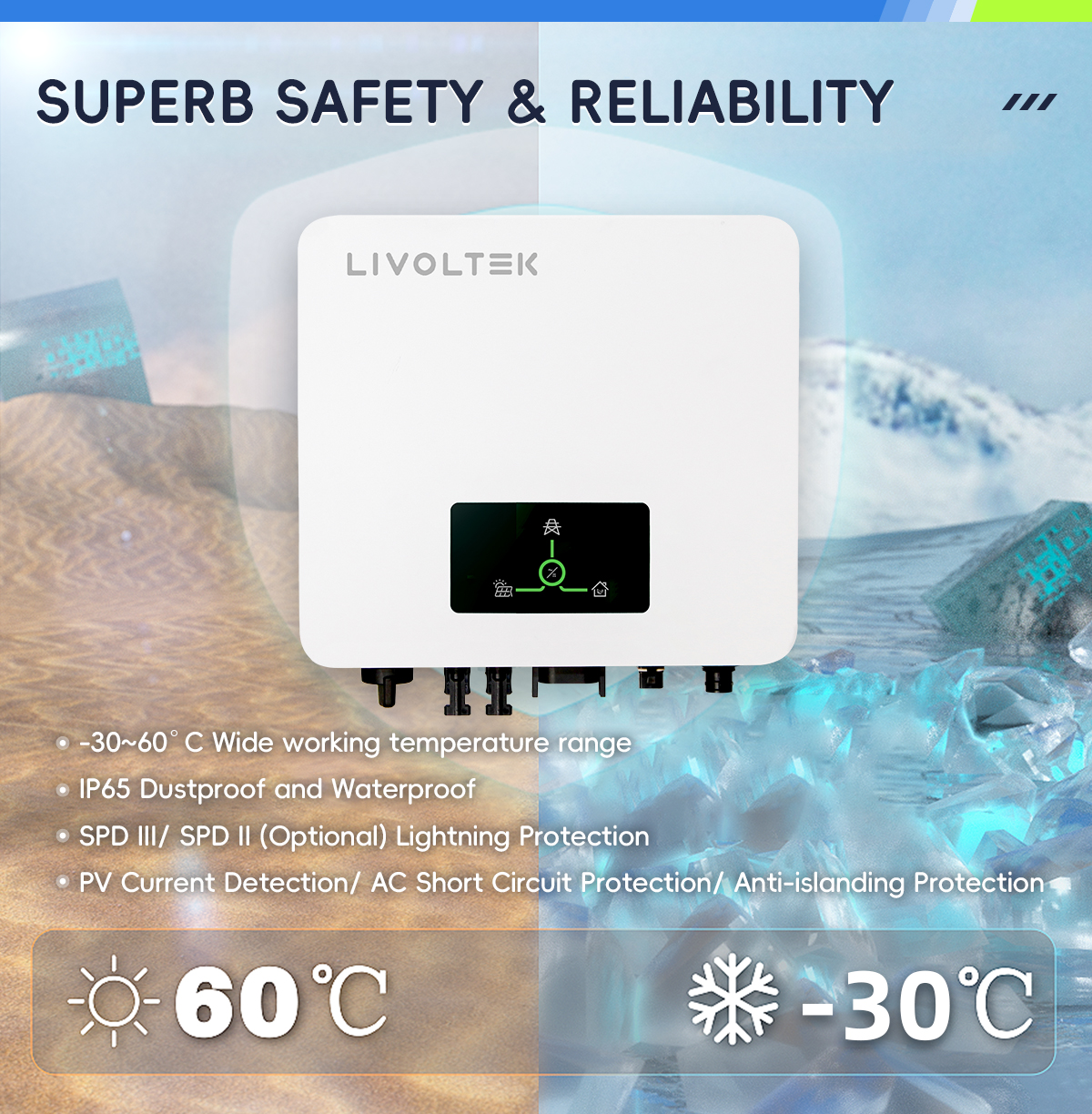

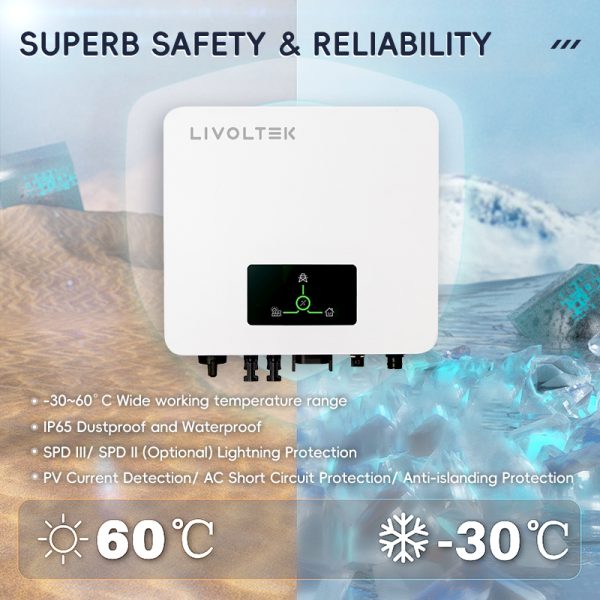

Surge Arrester

Type III / Type II (Optional)

PV Current Detection

Support

AC Short Circuit Protection

Support

Anti-islanding Protection

Support

Ground Fault Monitoring

Support

Residual Current Monitoring Unit

Support

DC Reverse Polarity Protection

Support

Anti-arc Protection

Optional

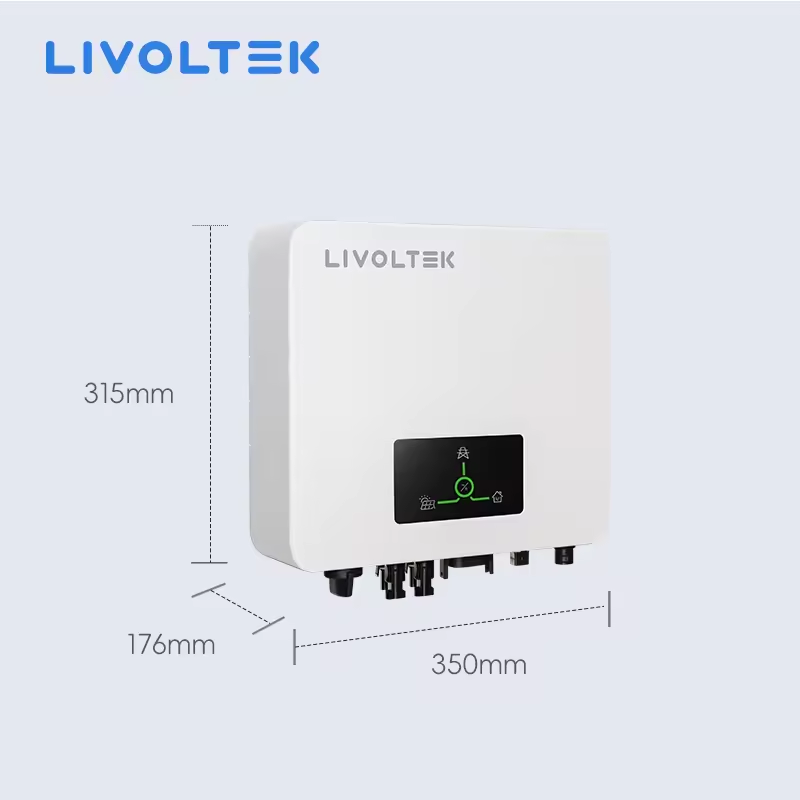

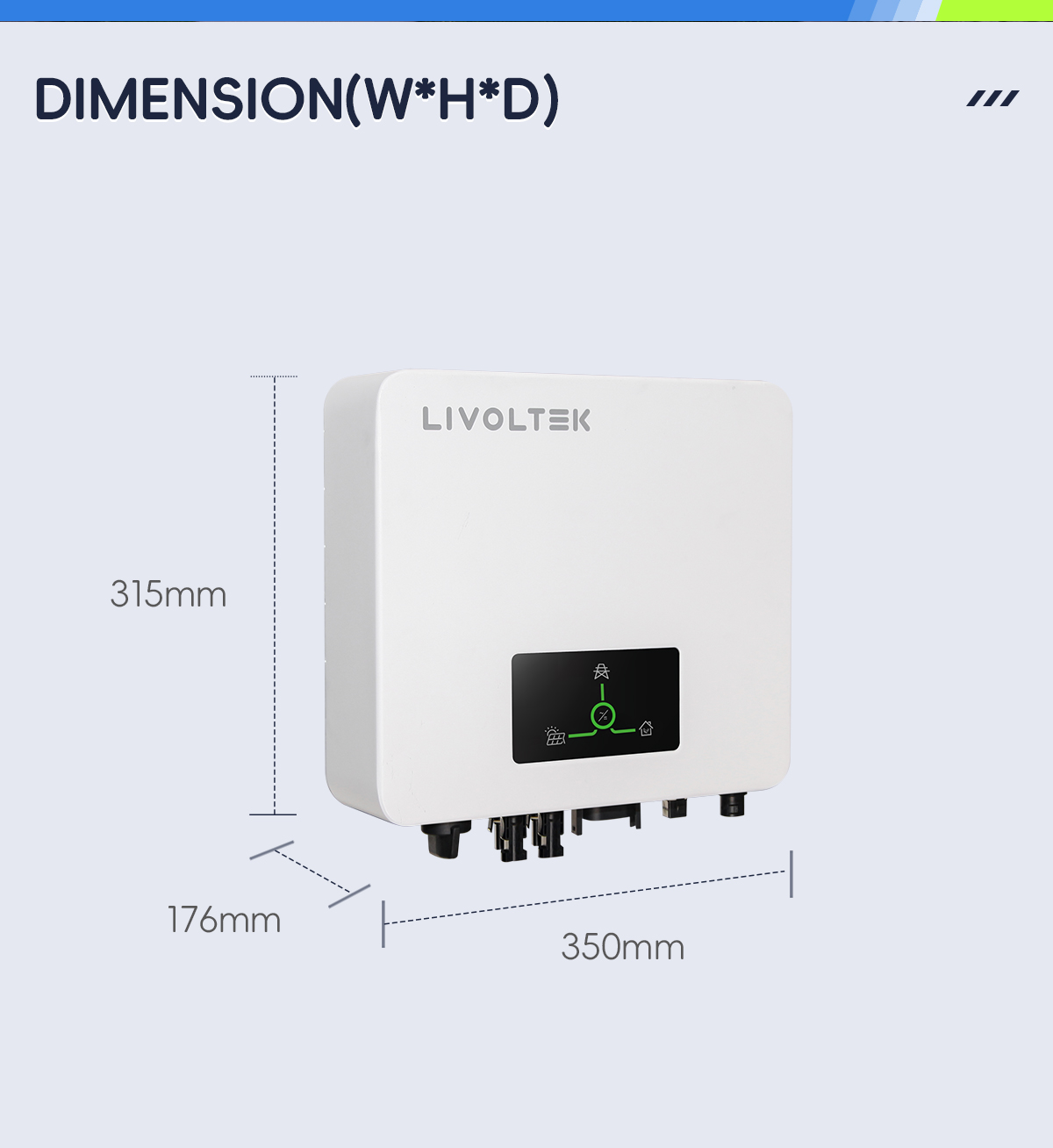

Dimension (W*H*D)

350*315*176mm

Weight

12.5kg

Protection Degree

IP65

Cooling

Natural Cooling

Operating Temperature Range

–30°C ~ +60°C(Derating at 45°C)

Typical Noise Emission

<25dB

Night Self Consumption

<1W

Display

LED+APP

Communication

RS485 (Meter) , Wi-Fi+Bluetooth , DRM

Topology

Transformerless

Grid Regulation

IEC61727 , IEC62116 , EN50549 , ABNT NBR 16149 , ABNT NBR 16150 , UL 1741 , IEEE 1547

Safety/EMC Standard

IEC/EN 62109-1/-2 , IEC/EN 61000-6-1/-2/-3/-4

Standard Warranty

5 Years/10 Years (Optional)
