230V 5(80)A RS485 1P CE certification, valid for single-phase Grid-tied inverter and electric vehicle charger.

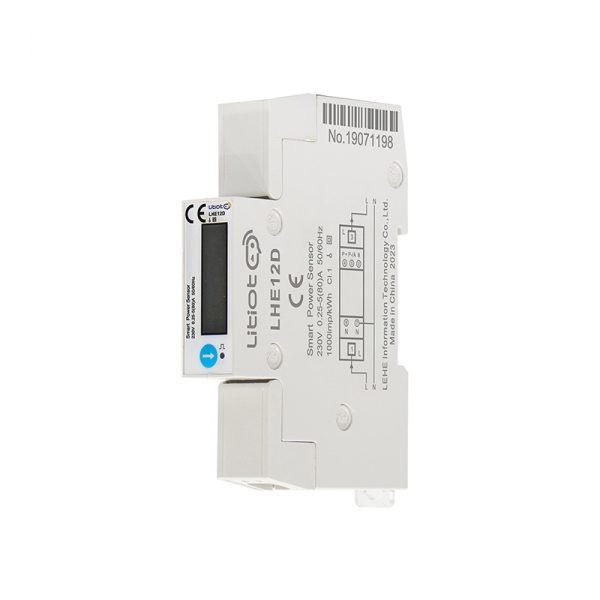

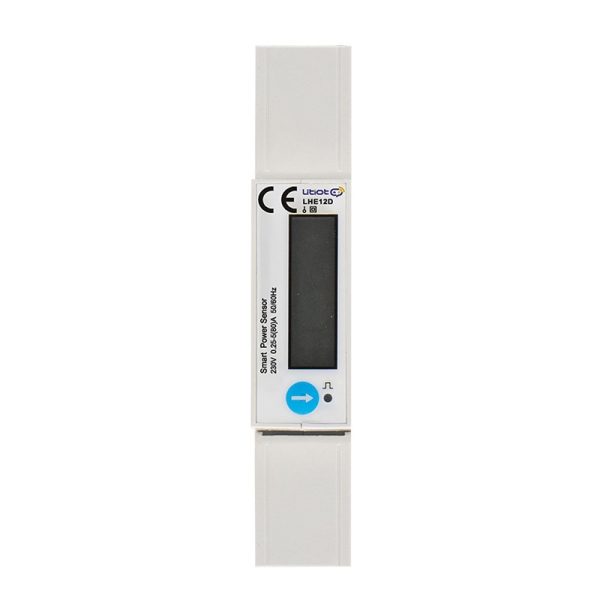

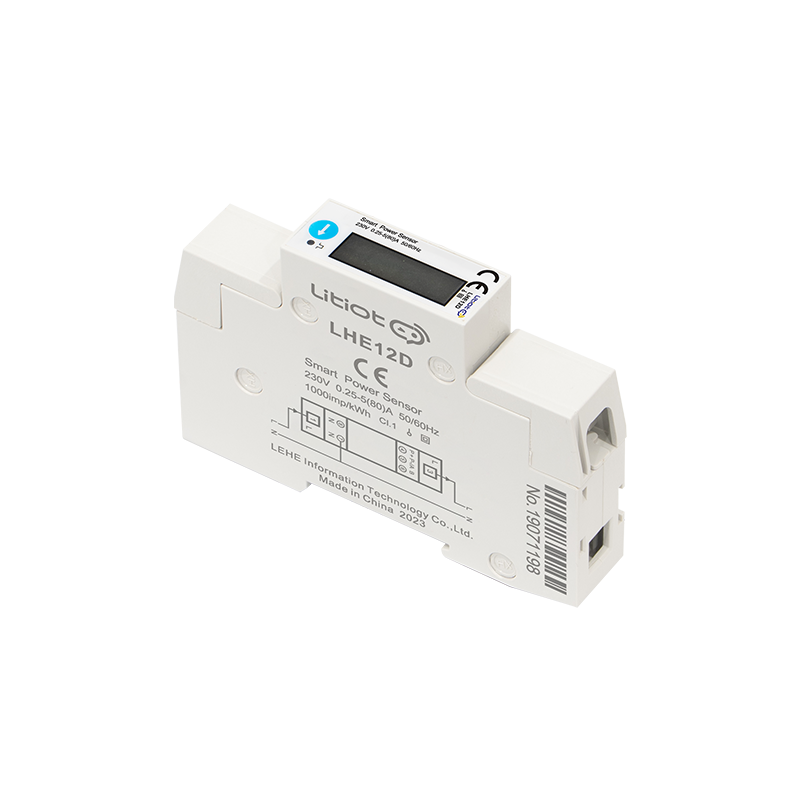

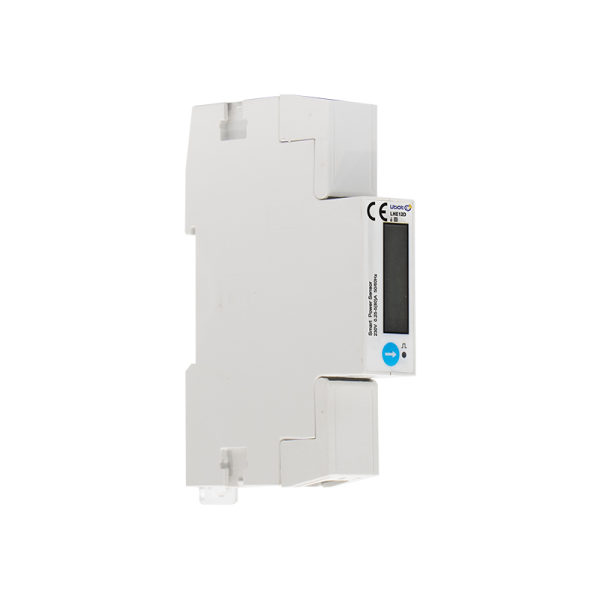

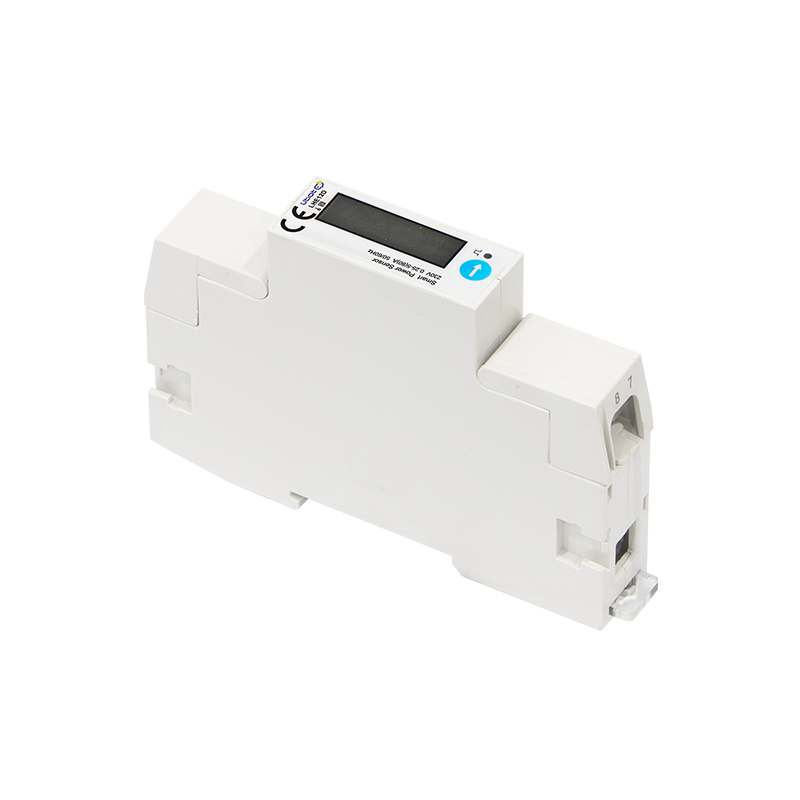

LHE12D is single phase multi-function direct connect rail-mounted meter. LHE12D intended to measure grid parameters, e.g. active energy, reactive energy, voltage, current, power, power factor and frequency. The RS485 interface provides power monitoring data for inverters and other devices to realize fast response control. Standard DIN rail installation, with small size, easy to install. Widely used in distributed photovoltaic, energy storage power station and other new energy field power data monitoring.
Features:
Safe Operatio
RS485 is physically isolated from the high voltage terminals
Fast Instantaneous Refresh
Support voltage, current, active power, reactive power, power factor and other instantaneous response of 100ms
Communication Function
Supports RS485 communication port, supporting up to 38400 baud rate
Module Expansion Interface
Support external communication module, can be used to expand
Bluetooth, WiFi and other wireless communication module, wireless communication with inverter equipment
