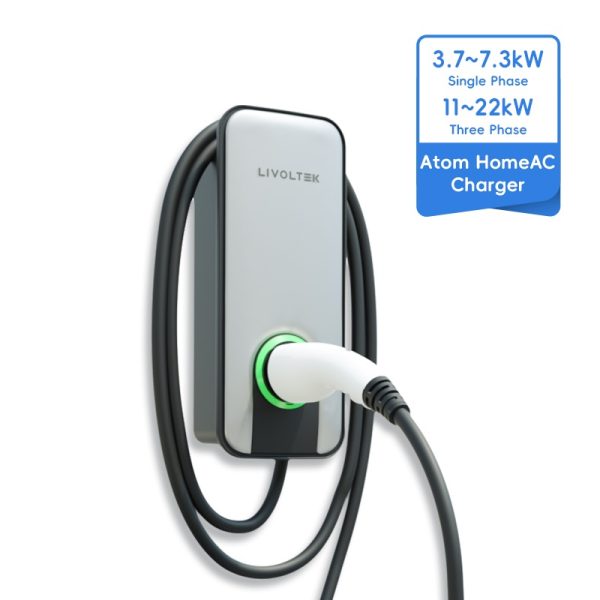

Atom Single Phase AC Charger 7.3kW with Fixed Cable Atom-7kW and WiFi(optional)

SKU A0070230E11R11301 Categories , ,

Price:

638.88

100 in stock

Need a smart and convenient way to charge your electric vehicle at home? Look no further than the LIVOLTEK Atom AC charger. This compact unit packs a punch, offering genuine intelligence for your charging routine. Featuring a clear circular indicator, the Atom can be easily mounted to a wall or pole for a plug-and-play solution. Plus, with multi-internet connectivity, you can monitor your charging data through the My Livoltek App, keeping you in control.

Key Features:

  • Flexible installation
    Wall mounting or stand-alone with optional charging pole
  • Smart Charging
    Use the My Livoltek App to effortlessly monitor, schedule, and save up to 30%+ on electric bills. Enjoy extra convenience with RFID charge cards.
  • Seamless Connectivity
    Easily connect and configure via Bluetooth, WiFi, Ethernet, RS485. Use the charger anytime, with or without Internet access.



Phase

Single Phase

Power

7.3KW

Model

A0070230E11

Product Name

Single-phase Residential AC Charger

Input/Output

.

Rated Power

7.3kW

Rated Voltage

230Vac±10%

Rated Frequency

50Hz/60Hz

Current Range

6~32A

Charging Interface Type

Type 2/5m

Specifications of Incoming Cables

3*6mm²

Basic Features

.

User Authorization

Free Charging , MyLivoltek APP (RFID Optional)

Cooling

Natural Cooling

Operating Temperature

-30℃~50℃

Storage Temperature

-40℃~70℃

Operating Humidity

5%~95%RH

Operating Altitude

≤2000m

IP Degree

IP54

Dimension (W*H*D)

170*400*110mm

Weight

3.7kg

Way of Installation

Wall Mounting (Column Optional)

Energy Management

Support

Standby Power Consumption

<5W

Other Features

.

Status Indication

3 Color LED

Firmware Upgrade

Local / OTA

Way of Communication

Bluetooth (Wi-Fi & Ethernet / 4G Optional)

Emergency Stop Protection

Support

Save Charging Record When Power Off

Support

Electricity Measurement

Build-in Metering Chip

External Communication

RS485/CAN

Monitoring

My Livoltek Cloud

Protection Function

.

Residual Current Protection

6mA DC RCD Internal

Multiple Protection

With Over Voltage Protection , Under Voltage Protection , Over-current Protection , Grounding Protection , Surge Protection , Short Circuit Protection , Fault Self-check and Other Multiple Protection Functions.

Standard

.

EMC

IEC-61851-21-2-2018

Safety

IEC-61851-1-2017
